380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine

Name: 380V 50 60Hz Pressed Rawhide Bones dog snacks making machine
Brand: Mikim
Price: 1 USD

Quality 380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine for sale

Brand Name : Mikim

Model Number : MK-20T

Certification : CE Certificate

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 99setsper year

Delivery Time : 45darys

Packaging Details : We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.

Application : Dog

Voltage : Customized by customer local Voltage.

Power(W) : 5.5kw

Weight : 1200kg

Dimension(L*W*H) : 600*500*1780mm

Warranty : 12 months

Pressing Type : Extrusion

Recipe & Formula : Provide free of charge

Name : Rawhide Dog Snacks Making Machine Manufacturer

Contact Now

Manufacturer of Dog Rawhide Chewing Bones Pressing Machine
380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine
Rawhide Dog Snacks Making Machine Manufacturer could produce pet chewing bone with cowhide, pigskin or sh-eepskin as material. It could press the material to be various shapes and sizes.

Features

1, It can be adjusted among the range of 5t-20t according to the different products’ procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

2, The dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our DR-200 Punching Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

3, Punching Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

Technical Parameters

Project	MK-20T
Liquid Pressure of Work (MPa)	14-21
Theory Output (Ton)	5-20
Working surface size (mm)	Left and Right 500
Working surface size (mm)
Working surface size (mm)
Working surface size (mm)	Front and Back 400
Height of Working Table Off the Ground(MM)	780
Biggest Operational Height(mm)	400
Close(mm)	200
Cylinder Stroke(mm)	200
Motor Power	5.5KW
Structural Style	Flour Column Three Board
	Above Oil Cylinder
Power source	380VAC,50/60Hz
Weight	1108kg
Dimension	6005001780mm

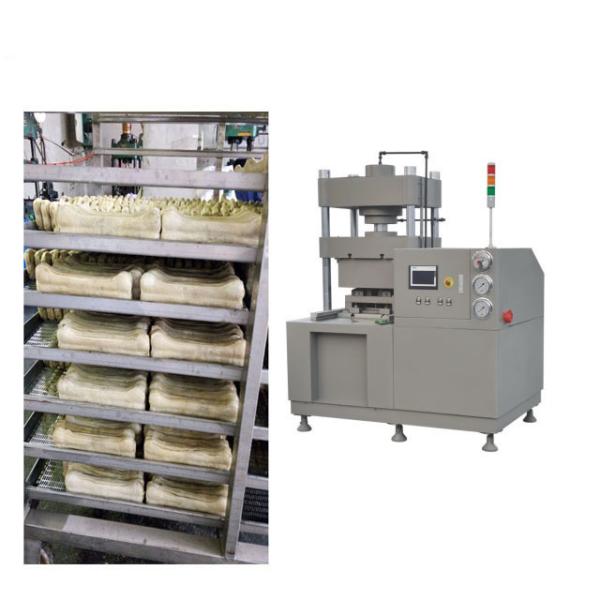

Sample Picture

380V , 50 / 60Hz Pressed Rawhide Bones dog snacks making machine
